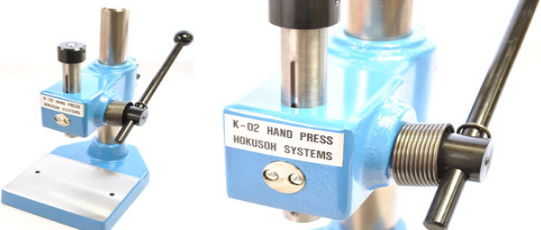

Hand Press K-02-65M
Hand Press K-02-65M
| 【Specification table】 | ||||
|---|---|---|---|---|
| Model | Specification | |||
| Ram stroke | Column high | Throat depth | Option | |
| K-02-65M | 65 | 240 | 190 | Ratchet |
| ※ Standard : Ram detent・ram jigs assembling hole「φ10H8 Depth15」 | ||||
| ※ Load : It is "power to add × around 10 times". | ||||
| ※ Throat high : It shows the high from the base to ram. | ||||
| ※ Ram stroke by Specification table : It shows the maximum stroke. | ||||
| ※ Ram stroke : It moves up and down by 32mm when the handle is moved 180 degrees. | ||||
